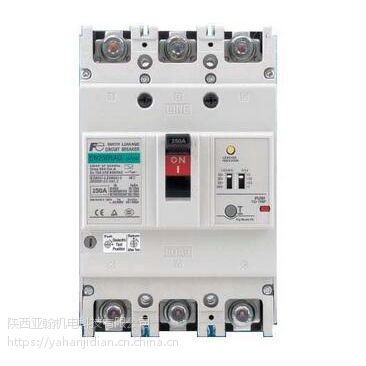

| 品牌：Fuji/富士 | 型号：BW250JAG-3P 250A | 产品系列：BW |
| 极数：3P | 脱扣器额定电流：250A | 灭弧介质：空气式 |
| 是否专供外贸：否 | 3C额定电压范围：交流额定电压1500V及以下 | 3C证书编号：iEC60947-2 |
| 产品认证：CE | 安装方式：固定式 | 速度：快速型 |
| 结构：塑壳式 | 操作方式：手动操作 |
富士BW系列塑壳断路器，根据其产品性能的不同，有经济型、标准型、高性能型产品
根据其生产及适用地域的不同，有中国组装、日本进口及全球通用产品
富士BW系列塑壳断路器产品规格型号
型号 额定电流
BW32AAG-2P# 3,5,10,15,20,30,32
BW32AAG-3P# 3,5,10,15,20,30,32
BW32SAG-2P# 3,5,10,15,20,30,32
BW32SAG-3P# 3,5,10,15,20,30,32
BW50AAG-2P# 5,10,15,20,30,32,40,50
BW50AAG-3P# 5,10,15,20,30,32,40,50
BW50EAG-2P# 5,10,15,20,30,32,40,50
BW50EAG-3P# 5,10,15,20,30,32,40,50
BW50SAG-2P# 5,10,15,20,30,32,40,50
BW50SAG-3P# 5,10,15,20,30,32,40,50
BW50RAG-2P# 5,10,15,20,30,32,40,50
BW50RAG-3P# 5,10,15,20,30,32,40,50
BW63EAG-2P# 60,63
BW63EAG-3P# 60,63
BW63SAG-2P# 60,63
BW63SAG-3P# 60,63
BW63RAG-2P# 60,63
BW63RAG-3P# 60,63
BW100EAG-2P# 50,60,63,75,100
BW100EAG-3P# 50,60,63,75,100
BW125JAG-2P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW125JAG-3P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW125JAG-4P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW125RAG-2P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW125RAG-3P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW125RAG-4P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW250EAG-2P# CJ 125, 150, 160, 175, 200, 225, 250
BW250EAG-3P# CJ 125, 150, 160, 175, 200, 225, 250
BW250JAG-2P# CJ 125, 150, 160, 175, 200, 225, 250
BW250JAG-3P# CJ 125, 150, 160, 175, 200, 225, 250
BW250JAG-4P# CJ 125, 150, 160, 175, 200, 225, 250
BW250RAG-2P# CJ 125, 150, 160, 175, 200, 225, 250
BW250RAG-3P# CJ 125, 150, 160, 175, 200, 225, 250
BW250RAG-4P# CJ 125, 150, 160, 175, 200, 225, 250
BW400EAG-2P# CJ 250, 300, 350, 400
BW400EAG-3P# CJ 250, 300, 350, 400
BW400SAG-2P# CJ 250, 300, 350, 400
BW400SAG-3P# CJ 250, 300, 350, 400
BW400RAG-2P# CJ 250, 300, 350, 400
BW400RAG-3P# CJ 250, 300, 350, 400
BW400RAG-4P# CJ 250, 300, 350, 400
BW400HAG-2P# CJ 250, 300, 350, 400
BW400HAG-3P# CJ 250, 300, 350, 400
BW400HAG-4P# CJ 250, 300, 350, 400
BW630EAG-3P# CJ 500, 630
BW630RAG-3P# CJ 500, 630
BW630RAG-4P# CJ 500, 630
BW630HAG-3P# CJ 500, 630
BW630HAG-4P# CJ 500, 630
BW800EAG-3P# CJ 700, 800
BW800RAG-3P# CJ 700, 800
BW800RAG-4P# CJ 700, 800
BW800HAG-3P# CJ 700, 800
BW800HAG-4P# CJ 700, 800
BW50RAGU-2P# CJ 3,5,10,15,20,30,32,40,50
BW50RAGU-3P# CJ 3,5,10,15,20,30,32,40,50 1
BW100EAGU-2P# CJ 60,63,70,75,80,90,100
BW100EAGU-3P# CJ 60,63,70,75,80,90,100
BW125JAGU-2P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW125JAGU-3P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW125RAGU-2P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW125RAGU-3P# CJ 15, 20 ,30, 40, 50, 60, 75, 100, 125
BW250EAGU-2P# CJ 125, 150, 160, 175, 200, 225, 250
BW250EAGU-3P# CJ 125, 150, 160, 175, 200, 225, 250
BW250JAGU-2P# CJ 125, 150, 160, 175, 200, 225, 250
BW250JAGU-3P# CJ 125, 150, 160, 175, 200, 225, 250
BW250RAGU-2P# CJ 125, 150, 160, 175, 200, 225, 250
BW250RAGU-3P# CJ 125, 150, 160, 175, 200, 225, 250
BW400EAGU-2P# CJ 250, 300, 350, 400
BW400EAGU-3P# CJ 250, 300, 350, 400
BW400SAGU-2P# CJ 250, 300, 350, 400
BW400SAGU-3P# CJ 250, 300, 350, 400
BW400RAGU-2P# CJ 250, 300, 350, 400
BW400RAGU-3P# CJ 250, 300, 350, 400
BW400HAGU-2P# CJ 250, 300, 350, 400
BW400HAGU-3P# CJ 250, 300, 350, 400
BW630RAGU-3P# CJ 500, 630
BW630HAGU-3P# CJ 500, 630
BW800RAGU-3P# CJ 700, 800
BW800HAGU-3P# CJ 700, 800
微型断路器
BC63E/BC125E/BE100E/BC32E/BC50E
特点
过载保护特性中，备有保护照明电气系统用的具有5-10In瞬时脱扣特性的C型特性，和保护普通电气系统得电线用的具有10-14In瞬时脱扣特性的D型特性。小型断路器和漏电脱扣器相组合的漏电断路器产品系列也相当齐全。由于可以安装辅助开关，报警开关，分励脱扣器等功能性元件，因此亦可对电气系统进行监视和控制。 系列构成
系列BC63型BC63型（带漏电）BC32，BC50型BC32型（带漏电）动作曲线C型D型额定电流6-63A6-40A6-50A6-32A6-32A极数1P/2P/3P/4P1P/2P/3P/4P1P/2P/3P/4P1P/2P/3P/4P1P/2P/3P/4P1
