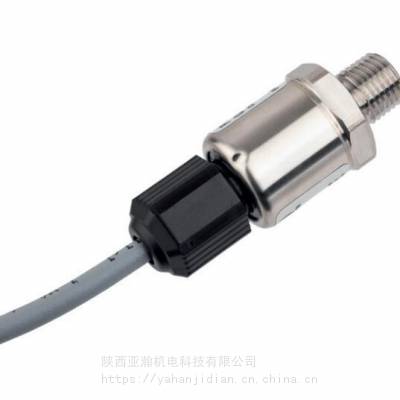

一.Schneider Electric EPG Series Gauge Pressure Sensors介绍

Product Description The EPG Series pressure transducers are compatible with a variety of HVAC and industrial applications, such as refrigeration measurement, pneumatic pressure measurement,

gas pressure measurement, pump inlet, and outlet fluid pressure. They are also compatible with extreme applications, such as aerospace and motor sports equipment. Volt and mA output options ensure integration with building systems. A wide selection of pressure ranges offers application

flexibility. The EPG Series offers a stainless steel housing and all models are warranted for a period of five years.

二.Schneider Electric EPG Series Gauge Pressure Sensors技术参数：

Specifications Electrical Supply Voltage Class 2; 12 to 30 Vdc

Output 0 to 5 Vdc (3-wire), 0 to 10 Vdc (3-wire)

or 4 to 20 mA (2-wire) Load Impedance

Volt models >10 kΩ mA models ≤250 Ω with 12 Vdc min. supply voltage

mA models ≤500 Ω with 17 Vdc min. supply voltage

Standard Connection Cable gland 59” (1.5 m) length

Pressure Port 1/4” NPT Male

Performance at 25 °C (77 °F) Accuracy* ±0.5% FS

Media Compatibility Fluids & gases compatible with 316L

stainless steel Pressure Cycles >100 million cycles

Over Pressure 2.5x FS with no change in calibration

Environmental  Shock  100G, 11 msec, 1/2 sine

Vibration  20G peak, 20 to 2400 Hz

EMI/RFI Protection Yes  Rating IP66 Operating Temp Range -30 to 120 °C (-22 to 248 °F)

Compensated Temp Range 0 to 55 °C (32 to 130 °F) Total Error Band Over Temp

<±3% of FS Humidity 0 to 95% RH non-condensing

三.Schneider Electric EPG Series Gauge Pressure Sensors 施耐德压力传感器型号如下：

EPG103-AJ Gauge Pressure Sensor, 0 to 15 psig, 0 to 5 Vdc

EPG103-AM Gauge Pressure Sensor, 0 to 15 psig, 4 to 20 mA

EPG103-AV Gauge Pressure Sensor, 0 to 15 psig, 0 to 10 Vdc

EPG104-AJ Gauge Pressure Sensor, 0 to 25 psig, 0 to 5 Vdc

EPG104-AM Gauge Pressure Sensor, 0 to 25 psig, 4 to 20 mA

EPG104-AV Gauge Pressure Sensor, 0 to 25 psig, 0 to 10 Vdc

EPG105-AJ Gauge Pressure Sensor, 0 to 50 psig, 0 to 5 Vdc

EPG105-AM Gauge Pressure Sensor, 0 to 50 psig, 4 to 20 mA

EPG105-AV Gauge Pressure Sensor, 0 to 50 psig, 0 to 10 Vdc

EPG106-AJ Gauge Pressure Sensor, 0 to 75 psig, 0 to 5 Vdc

EPG106-AM Gauge Pressure Sensor, 0 to 75 psig, 4 to 20 mA

EPG106-AV Gauge Pressure Sensor, 0 to 75 psig, 0 to 10 Vdc

EPG107-AJ Gauge Pressure Sensor, 0 to 100 psig, 0 to 5 Vdc

EPG107-AM Gauge Pressure Sensor, 0 to 100 psig, 4 to 20 mA

EPG107-AV Gauge Pressure Sensor, 0 to 100 psig, 0 to 10 Vdc

EPG108-AJ Gauge Pressure Sensor, 0 to 250 psig, 0 to 5 Vdc

EPG108-AM Gauge Pressure Sensor, 0 to 250 psig, 4 to 20 mA

EPG108-AV Gauge Pressure Sensor, 0 to 250 psig, 0 to 10 Vdc

EPG109-AJ Gauge Pressure Sensor, 0 to 500 psig, 0 to 5 Vdc

EPG109-AM Gauge Pressure Sensor, 0 to 500 psig, 4 to 20 mA

EPG109-AV Gauge Pressure Sensor, 0 to 500 psig, 0 to 10 Vdc
